Let’s check what the Best Option is to Deploy MS Teams MSI Using SCCM. I have a post about deploying Microsoft Teams using the Office 365 ProPlus deployment workflow in SCCM. I don’t think deploying the entire Office 365 ProPlus content is a great idea when you want to deploy ONLY MS Teams from the Office 365 ProPlus package.
NOTE! – Microsoft Teams is part of Microsoft 365 Apps. You can use the same method to Deploy Microsoft Teams with Microsoft 365 Apps.
I got feedback that Office 365 ProPlus workload installation downloads 2 GB of complete Office suite no matter what product you want to install from the wizard. I agree & I think in the specific case of Teams.
Microsoft announced that Skype for Business will end support by July 31, 2021. So, most organizations have started migrating to MS Teams. SCCM allows admins to easily deploy the application to Windows 10 devices.
Download MS Teams MSI – Deploy MS Teams MSI Using SCCM | ConfigMgr
The best way to deploy MS Teams MSI is when you already have the Office 365 ProPlus package in your managed devices. You can download and deploy only the MSI from Microsoft (around 150 MB).
Command-Line Options
The following are the command line options for deploying the MS Teams MSI. You can use these commands while you deploy this MSI using Configuration Manager | SCCM.
msiexec /i Teams_windows.msi OPTIONS="noAutoStart=true" msiexec /i Teams_windows_x64.msi OPTIONS="noAutoStart=true"
NOTE! – You can Disable auto-launch for the MS Teams MSI installer. When a user logs in to Windows, Teams is installed with the MSI, and a shortcut to start Teams is added to the user’s desktop.
Create MS Teams Application Using SCCM

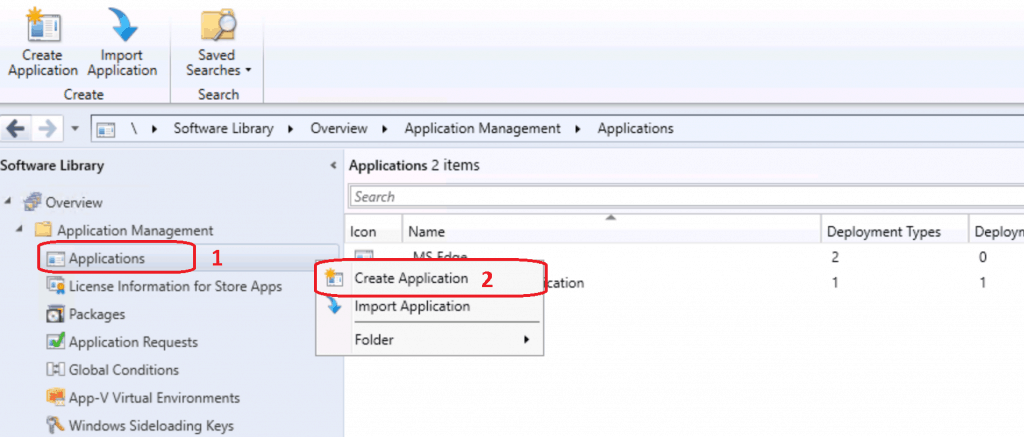

- Launch SCCM Console
- Navigate to \Software Library\Overview\Application Management\Applications
- Right Click on the Applications node
- Select Create Application

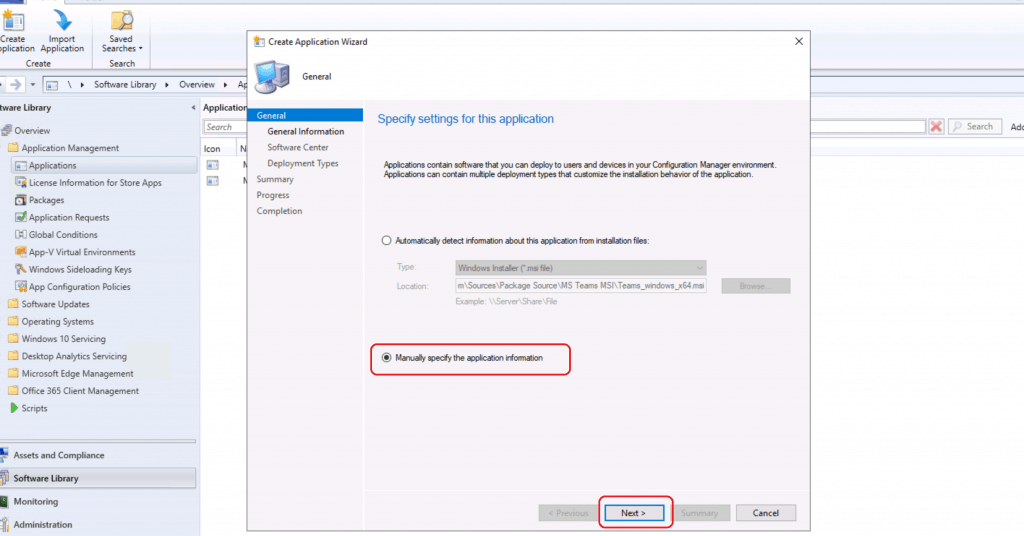

Specify Settings for this Application
- Select the option called “Manually specify the application information“
- Click on the NEXT button

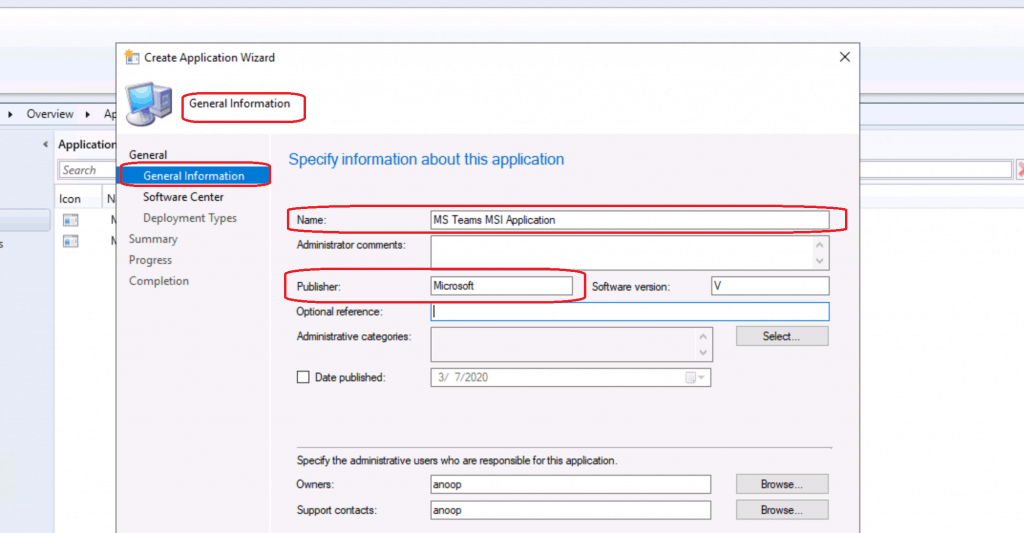

- Enter the name of the application you want to deploy – MS Teams MSI Application
- Enter the Publisher Name – Microsoft
- Click on NEXT to continue

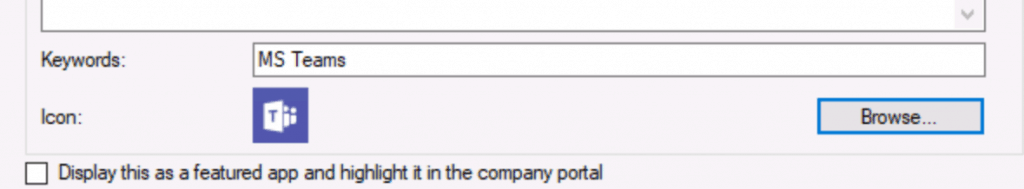

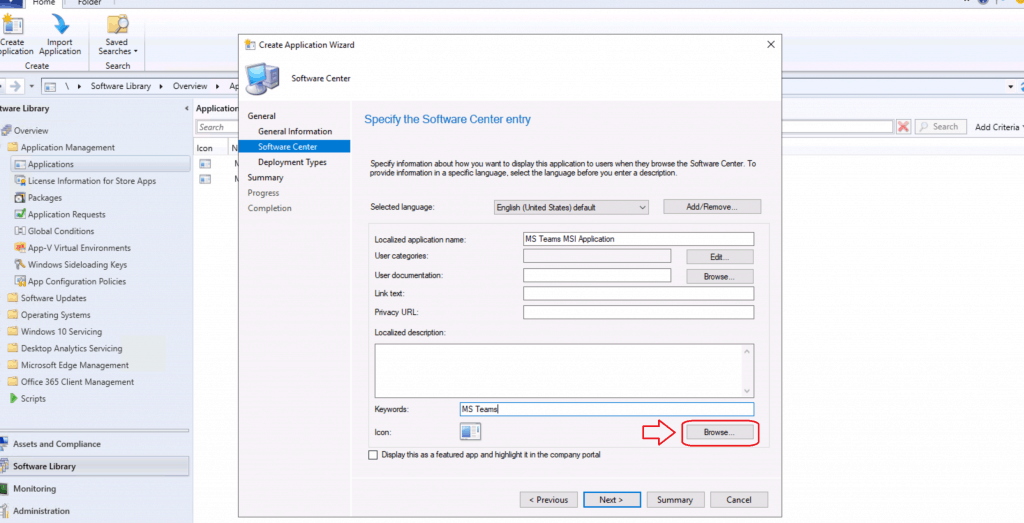

- Click on Browse to select the Software Center ICON for MS Teams
- Download the following Teams ICON Save the picture to a network location and use it for the next step
- Click on the NEXT button once the Teams ICON is uploaded

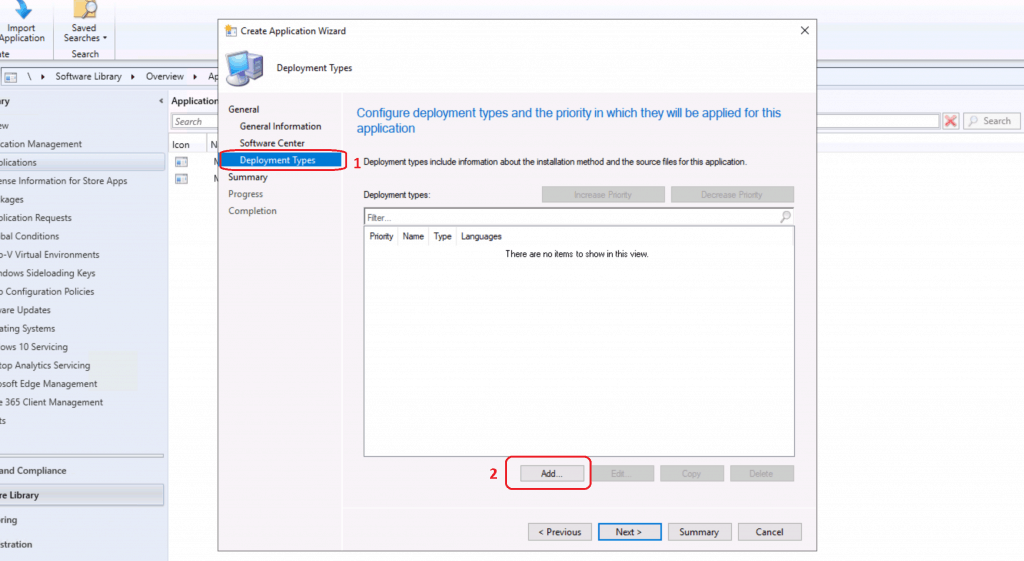

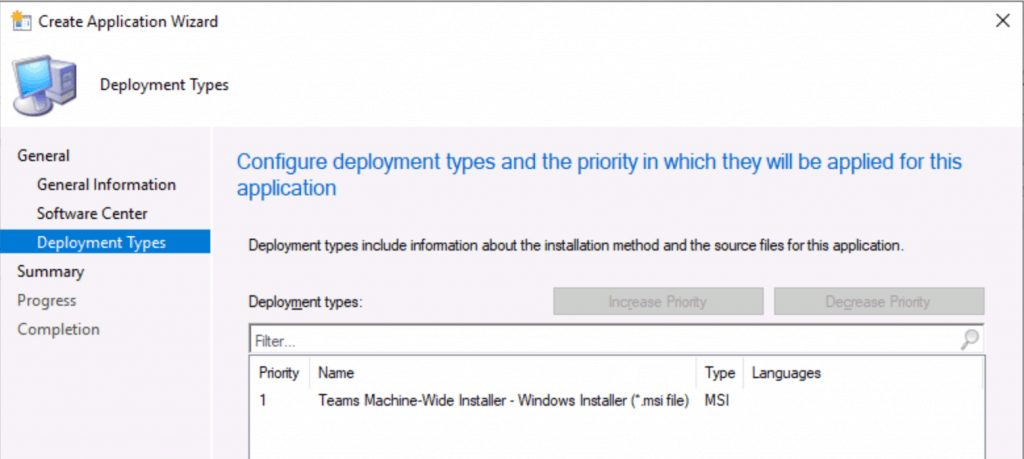

- On the Deployment Types page, you need to provide the following details.
- Deployment Types include information about the installation method and the source files for the application
- Click on ADD button to configure the MS Teams application
Deployment Type Creation for MS Teams

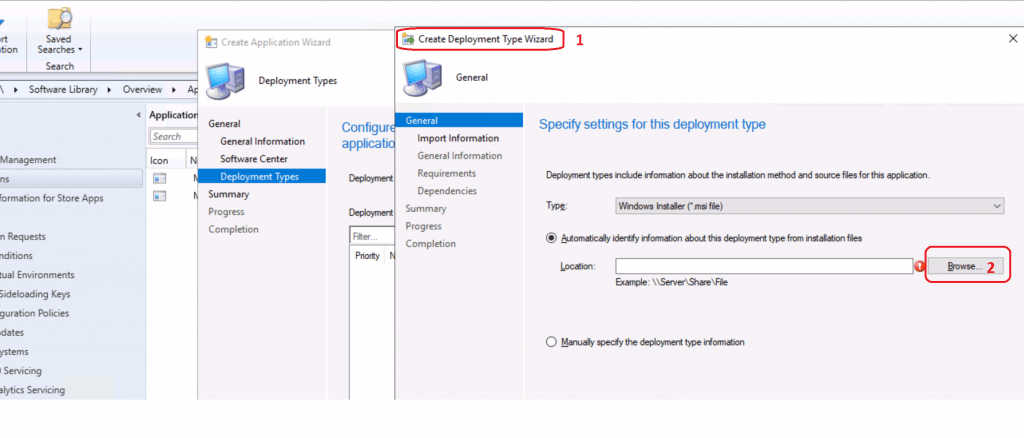

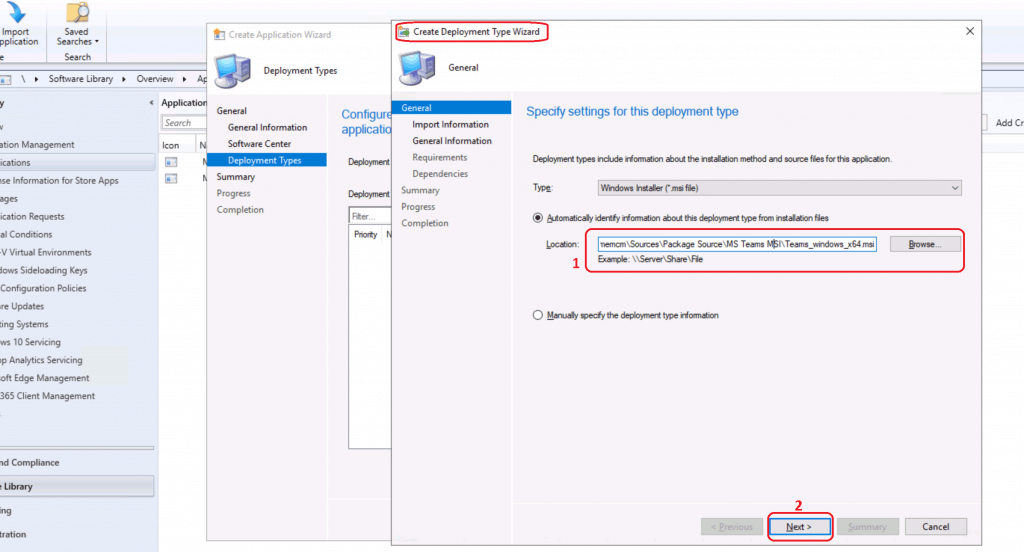

- Specify the settings for this deployment type
- Type of the Application – Windows Installer (*.msi file)
- Click on the Browse button to automatically identify the information about deployment type from MS Teams Installation File
- Select the Downloaded Teams MSI – Teams_windows_x64.msi
- Click on NEXT to continue
- Click on NEXT to continue.
- The following is the information that SCCM imported from MS Teams MSI file
General Information
Name: Teams Machine-Wide Installer - Windows Installer (.msi file) Technology: Windows Installer (.msi file)
Software version:
Detection Method
Product code: {731F6BAA-A986-45A4-8936-7C3AAAAA760B}
User Experience
Installation behavior: Install for user

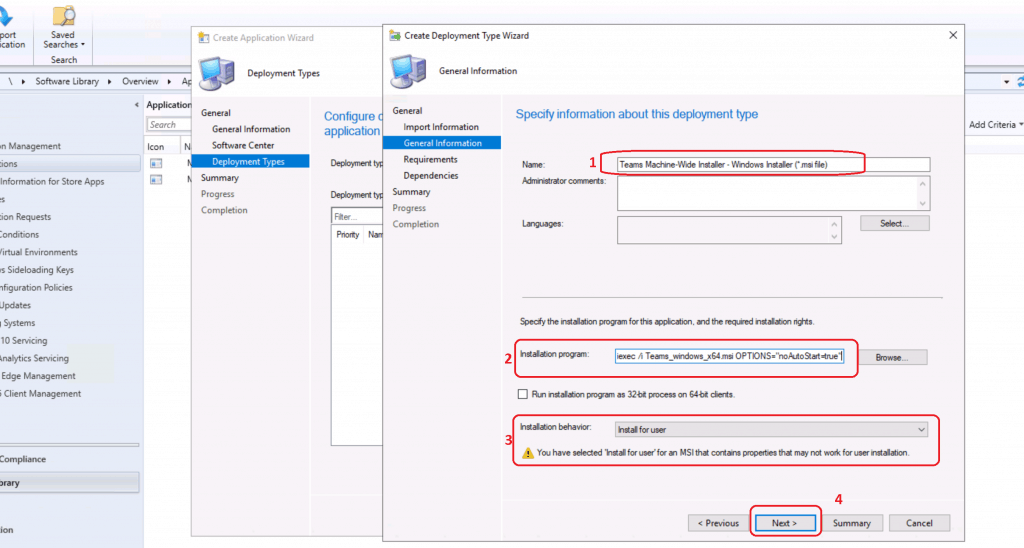

- Enter the Name of the deployment – Teams Machine-Wide Installer – Windows Installer (*.msi file)
- Installation Program – for 64-bit Teams MSI installation
- msiexec /i Teams_windows_x64.msi OPTIONS=”noAutoStart=true”
- Select Installation Behavior – Install for User

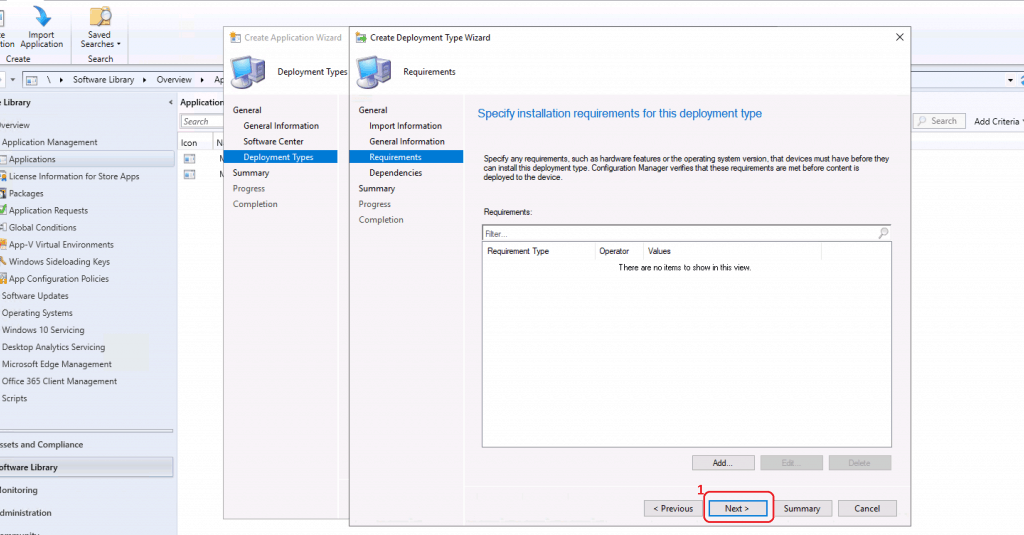

- Click on NEXT to continue on the Requirements page

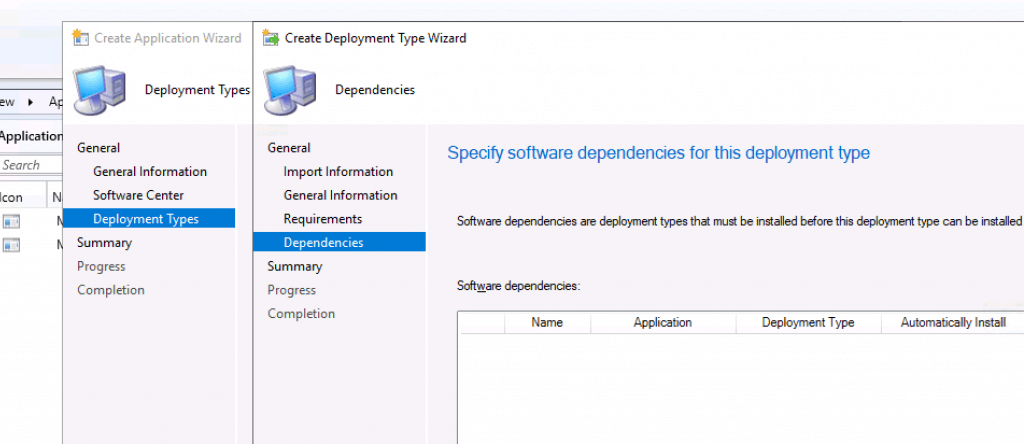

- Select the Software Dependencies of the Team application
- Click NEXT to Continue

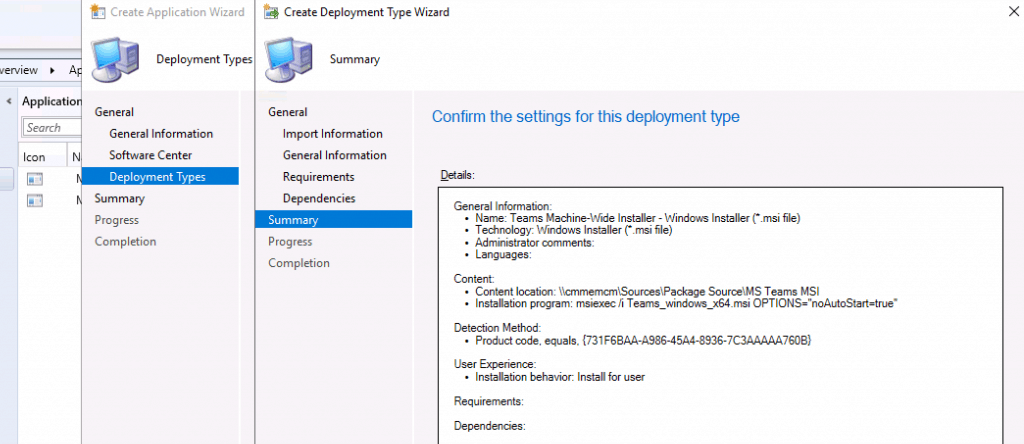

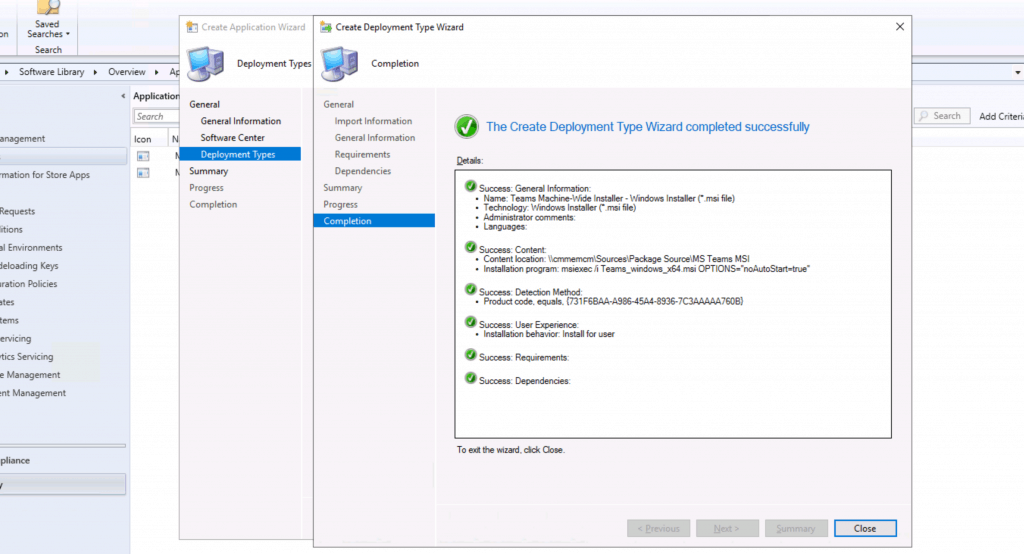

- Confirm the Settings of Teams Deployment configuration
- Click on NEXT to continue
General Information:
• Name: Teams Machine-Wide Installer - Windows Installer (.msi file) • Technology: Windows Installer (.msi file)
• Administrator comments:
• Languages:
Content:
• Content location: \cmmemcm\Sources\Package Source\MS Teams MSI
• Installation program: msiexec /i Teams_windows_x64.msi OPTIONS="noAutoStart=true"
Detection Method:
• Product code, equals, {731F6BAA-A986-45A4-8936-7C3AAAAA760B}
User Experience:
• Installation behavior: Install for user
Requirements:
Dependencies:
- Click on CLOSE to complete the MS Teams Application Deployment type using SCCM
- Click on NEXT to Continue

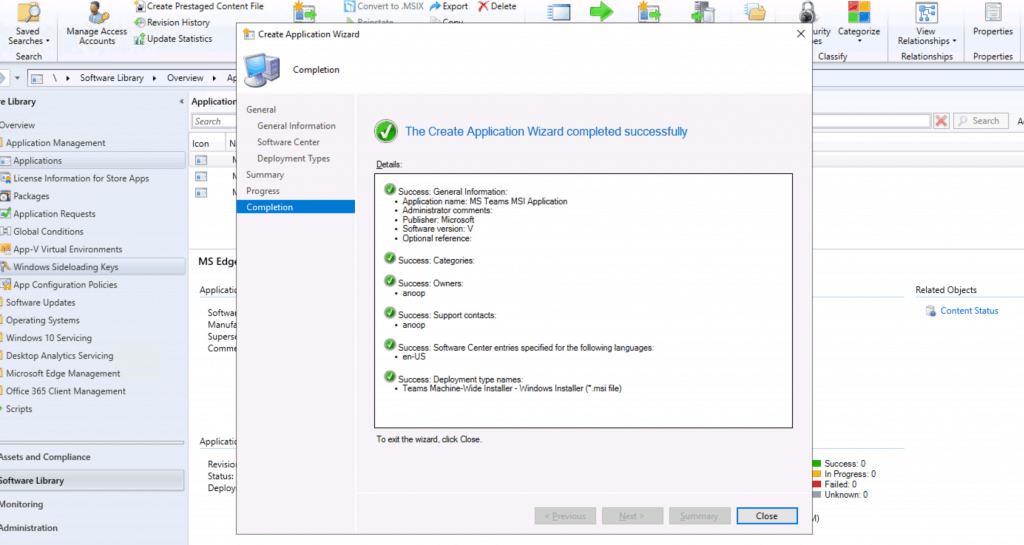

- Click on NEXT, NEXT, and CLOSE to complete the application creation process
Deploy MS Teams Using SCCM

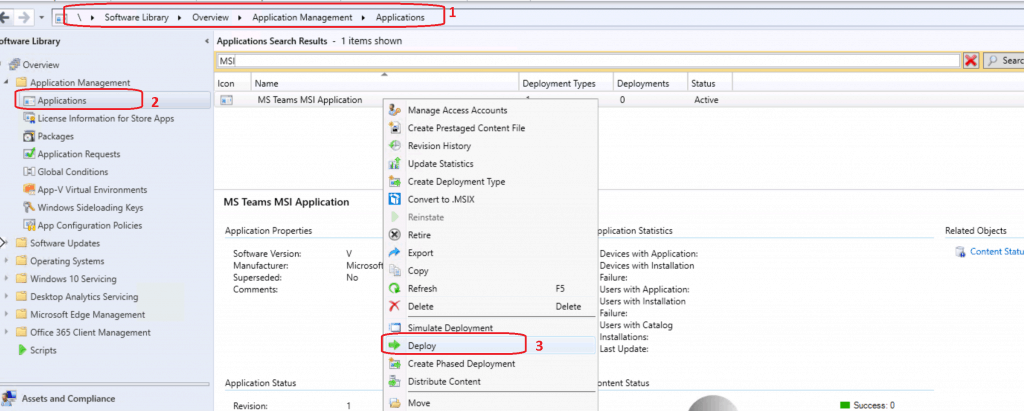

- Navigate to \Software Library\Overview\Application Management\Applications
- Right-click on the MS Teams application created above
- Select DEPLOY
- Click on the BROWSE button near the Collection
- Select the COLLECTION you want to deploy the MS Teams application

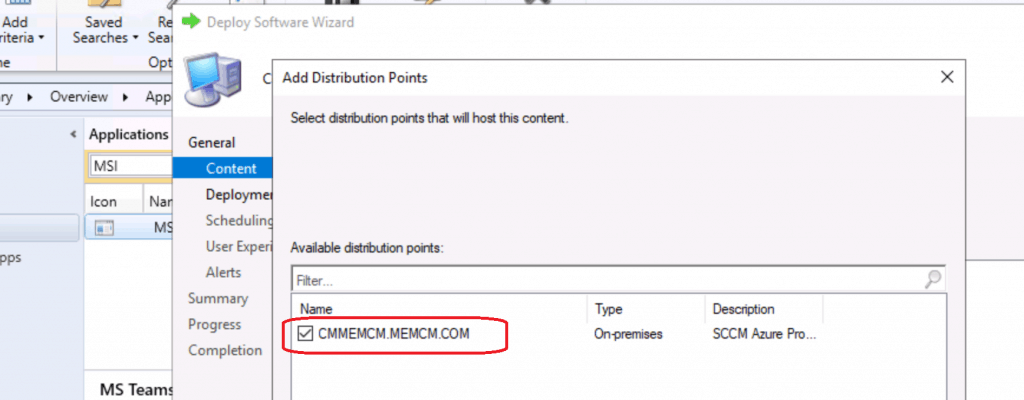

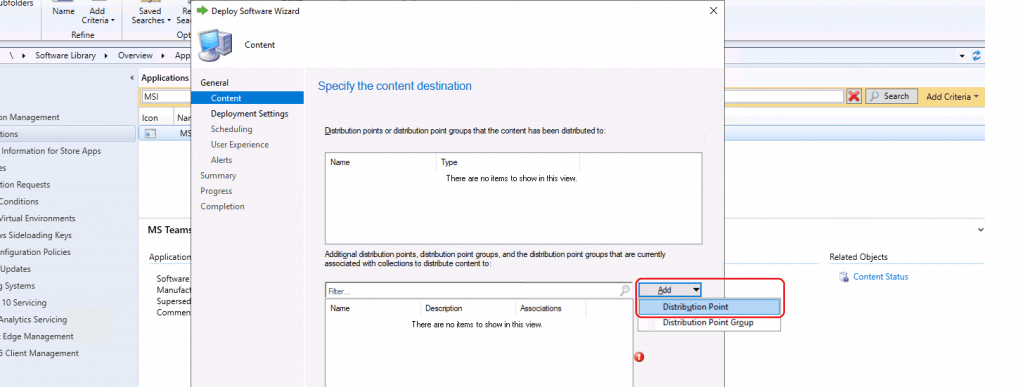

- Click on ADD button to distribute the Source files of the Teams application to the Distribution Point server
- Select the Distribution Point option
- Select DP CMMEMCM.MEMCM.COM
- Click OK to continue

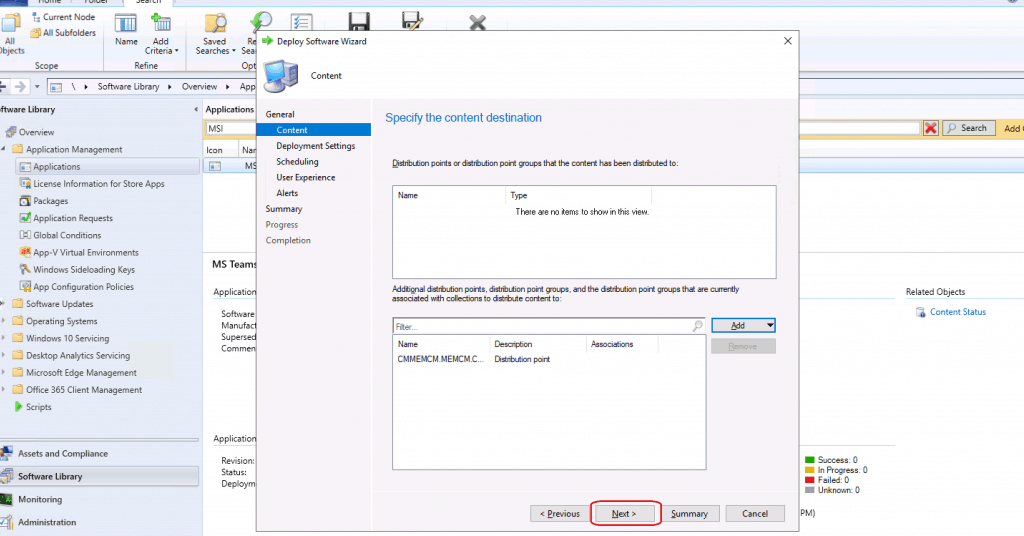

- Click on NEXT to continue

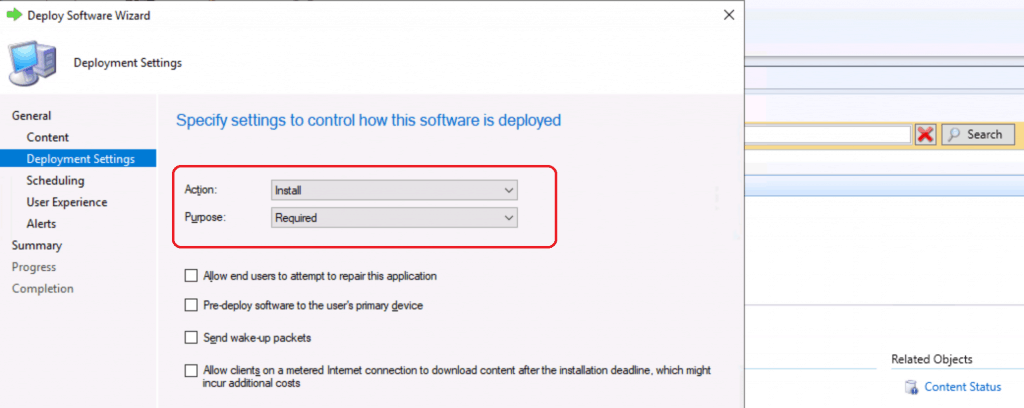

- Select the installation ACTION as INSTALL
- Select the Purpose as REQUIRED

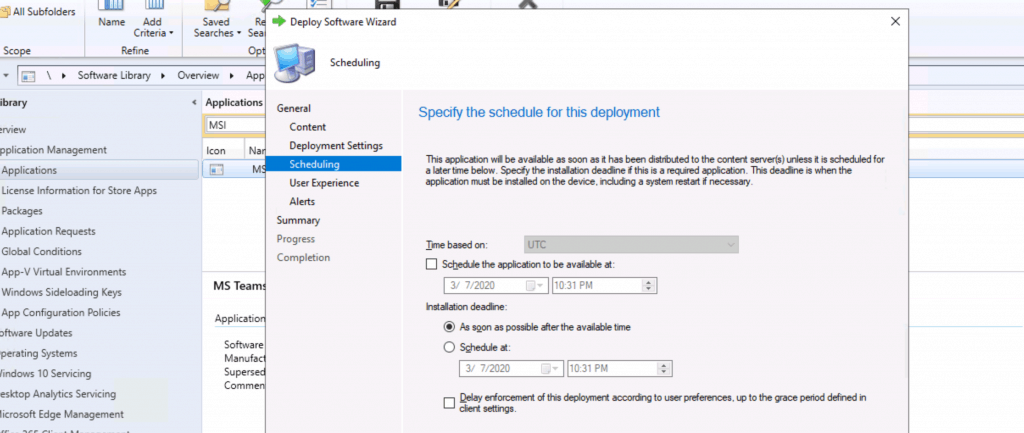

- Schedule the installation of the MS Teams application on to Windows 10 devices
- Installation Deadline
- As Soon As Possible after the available time
- Click on the NEXT button on the USER EXPERIENCE page
- Click on the NEXT button on the ALERTS page
- Click NEXT and Confirm the summary page
General • Software: MS Teams MSI Application • Collection: All Desktop and Server Clients (Member Count: 1) • Use default distribution point groups associated to this collection: Disabled • Automatically distribute content for dependencies: Disabled Deployment Settings • Action: Install • Purpose: Required • Allow end users to attempt to repair this application: Disabled • Pre-deploy software to the user's primary device: Disabled • Send wake-up packets: Disabled • Allow clients to use a metered Internet connection to download content: Disabled Application Settings (retrieved from application in software library) • Application Name: MS Teams MSI Application • Application Version: V • Application Deployment Types: Windows Installer (*.msi file) Scheduling • Time based on: UTC • Available Time: As soon as possible • Deadline Time: Disabled • Delayed enforcement on deployment: Disabled User Experience • User notifications: Display in Software Center and show all notifications • Ignore Maintenance Windows: Disabled • When software changes are required, show a dialog window to the user instead of a toast notification: Disabled • System restart (if required to complete the installation): Disabled • Commit changes at deadline or during a maintenance window (requires restarts): Enabled Alerts • Enable System Center Operations Manager maintenance mode: Disabled • Generate System Center Operations Manager alert when a software installation fails: Disabled • Create a deployment alert when the threshold is lower than the following: Disabled • Create a deployment alert when the threshold is higher than the following: Disabled Content (1): • CMMEMCM.MEMCM.COM

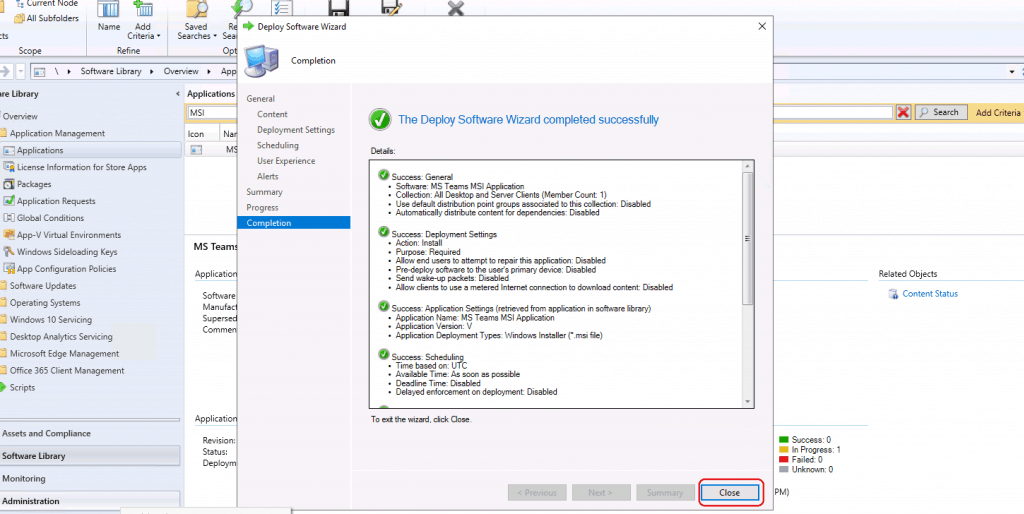

- Click CLOSE to finish the deploy MS Teams using SCCM
Results

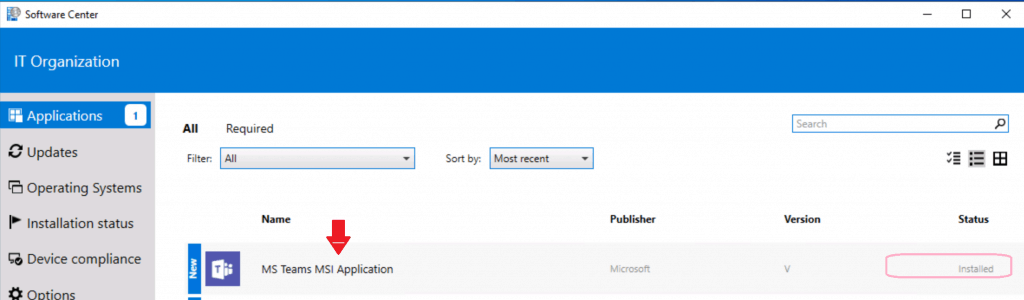

Software Center shows MS Teams application successfully INSTALLED on the Windows 10 Device.
- Restart the Windows 10 machine to complete the installation of MS Teams
Resources
- https://docs.microsoft.com/en-us/MicrosoftTeams/msi-deployment
- How to Install Office 365 ProPlus Client Package
- Skype for Business Online – End of Life – July 31, 2021
- Install Microsoft Teams using Microsoft Endpoint Configuration Manager
