FIX: SCCM Task Sequence Failed to Run Command Line Error 0x8007010B

Let’s see how you can FIX SCCM Task Sequence Failed to run command line Error 0x8007010B. This error code prompt when task sequence failed to execute steps during operating system deployment with Configuration Manager. The error 0x8007010B translates “The directory name is invalid”. This is often seen when the specified command run in task sequence step doesn’t have the valid path to execute the command line.

You can learn how to add Run Command Line Step to SCCM Task Sequence. The command line added to SCCM task sequence must be installed silently when you decide to add during the OS deployment.

Issue Summary

This error task sequence failed to Run Command Line Error 0x8007010B appears during the operating system deployment SCCM task sequence trying to execute the added steps attempted to access a directory that no longer exists, or the name of the directory is invalid. Task Sequence fails with the following error message –

The task sequence execution engine Install Software failed to run command line, hr=0x8007010b. The operating system reported error 2147942667: The directory name is invalid.

Patch My PC

It’s best to examine the SMSTS.log to troubleshoot OSD-related problems, learning to read SMSTS.log is very important, and be aware of the location of SMSTS log files for different phases of deployment. More you can explore SCCM OSD Task Sequence Troubleshooting Steps by Step Ultimate Guide SMSTS.log.

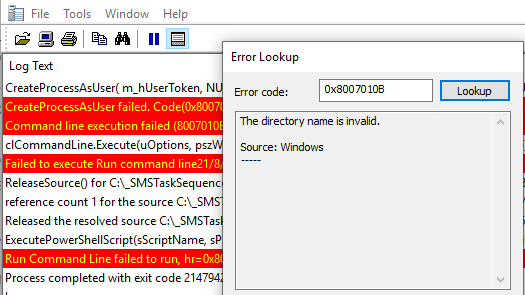

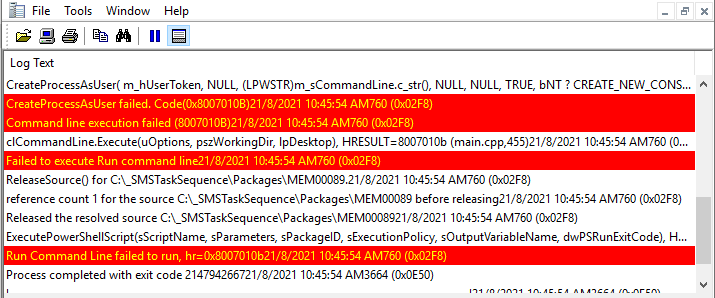

 Here’s the highlight from the SMSTS.log –

FIX: SCCM Task Sequence Failed to Run Command Line Error 0x8007010B 1
Executing command line: Run command line
CreateProcess failed. Code(0x8007010B)
Command line executionfailed (8007010B)
Failed to execute command line.
The directory name is invalid. (Error: 8007010B; Source: Windows)
Install Software failed to run command line, hr=0x8007010b. The operating system reported error 2147942667: The directory name is invalid.

The Task Sequence Failed to Run Command Line Error 0x8007010B as the command line and path provided in the Run Command line step to sccm Task Sequence could not access content from the specified path. This could be due to a path mismatch or space between the directory name.

FIX: SCCM Task Sequence Failed to Run Command Line Error 0x8007010B
FIX: SCCM Task Sequence Failed to Run Command Line Error 0x8007010B

FIX – Task Sequence Failed to Run Command Line Error 0x8007010B

Let’s check the possible solutions to FIX Task Sequence Failed to Run Command Line Error 0x8007010B. It could be different based on the details you get into logs –

Adaptiva
  • In the Configuration Manager console, go to the Software Library workspace, expand Operating Systems, and then select the Task Sequences node.
  • In the Task Sequence list, select the deployed task sequence that you want to edit. Select Edit to modify.
  • Locate the steps and validate the command line added to steps and syntax. If you have added any path inside or directly to command line, Make sure to add double quote to avoid the space between them. For Example – cmd /c “Default Apps.bat”

Important – It’s always recommended to test the script manually before directly adding to the task sequence step. This will help you to perform a smooth deployment and ignore any further issues.

  • The files added to source location is shared over network location and have Network Access Account has read permission on the directories.
  • If the commnad line having dependencies over files, Instead of running script directly from the UNC path, Create a package and add all required files, Excecute with the batch file as shown below –
FIX: SCCM Task Sequence Failed to Run Command Line Error 0x8007010B
FIX: SCCM Task Sequence Failed to Run Command Line Error 0x8007010B

After validating the steps, do the necessary changes. Click Apply and OK in Task Sequence Editor to apply changes. Perform the deployment, You should be able to successfully perform the deployment.
